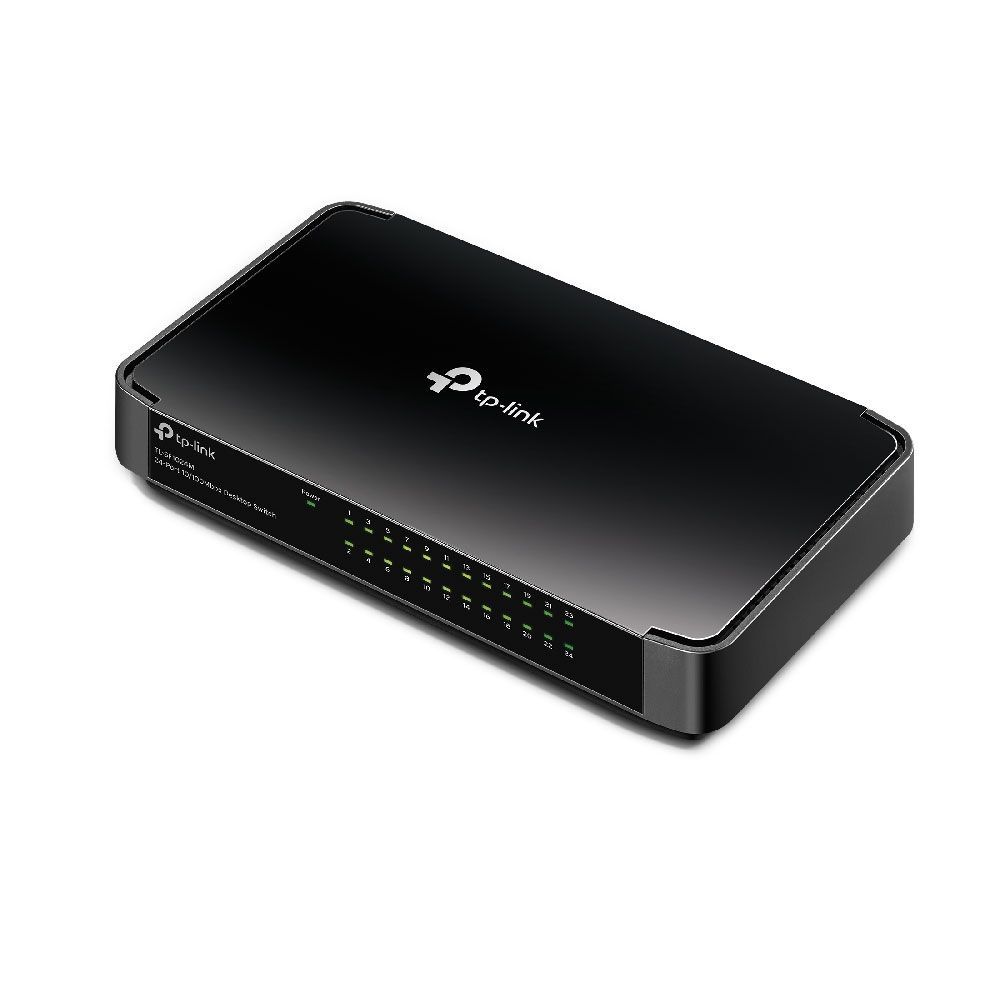

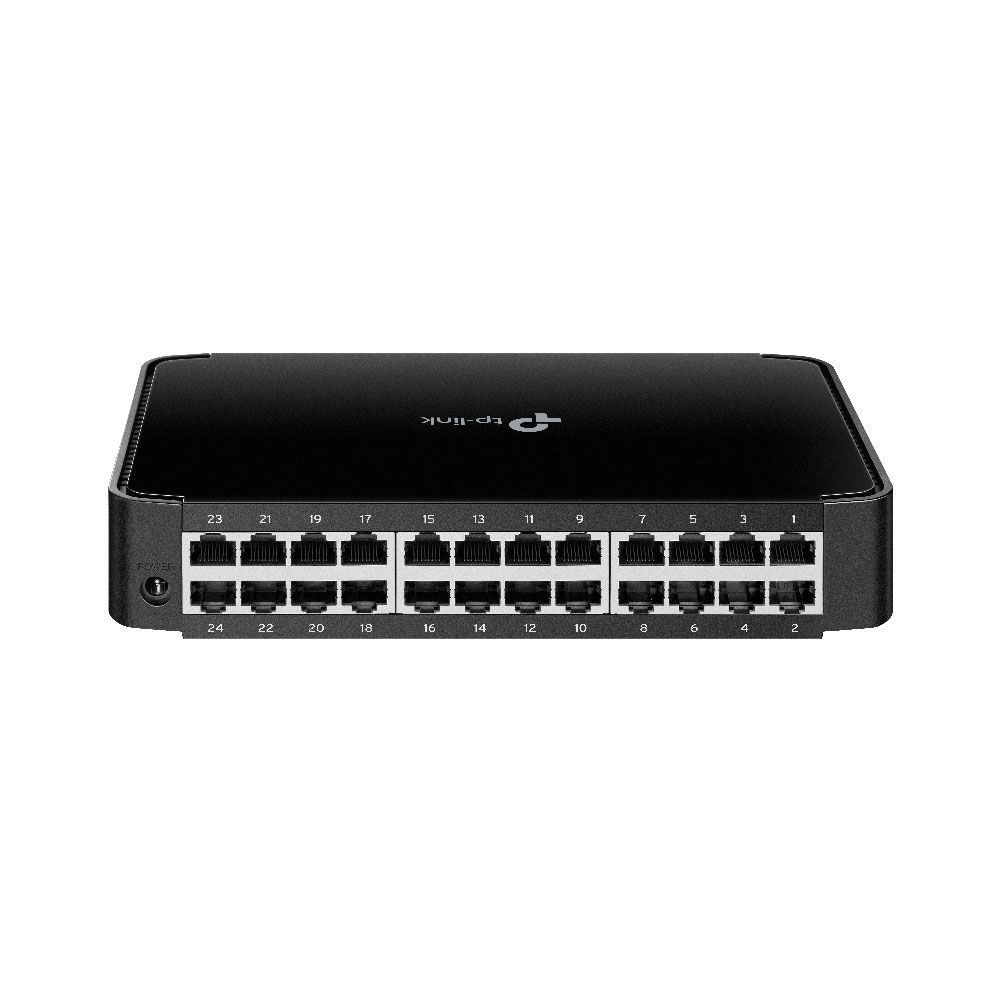

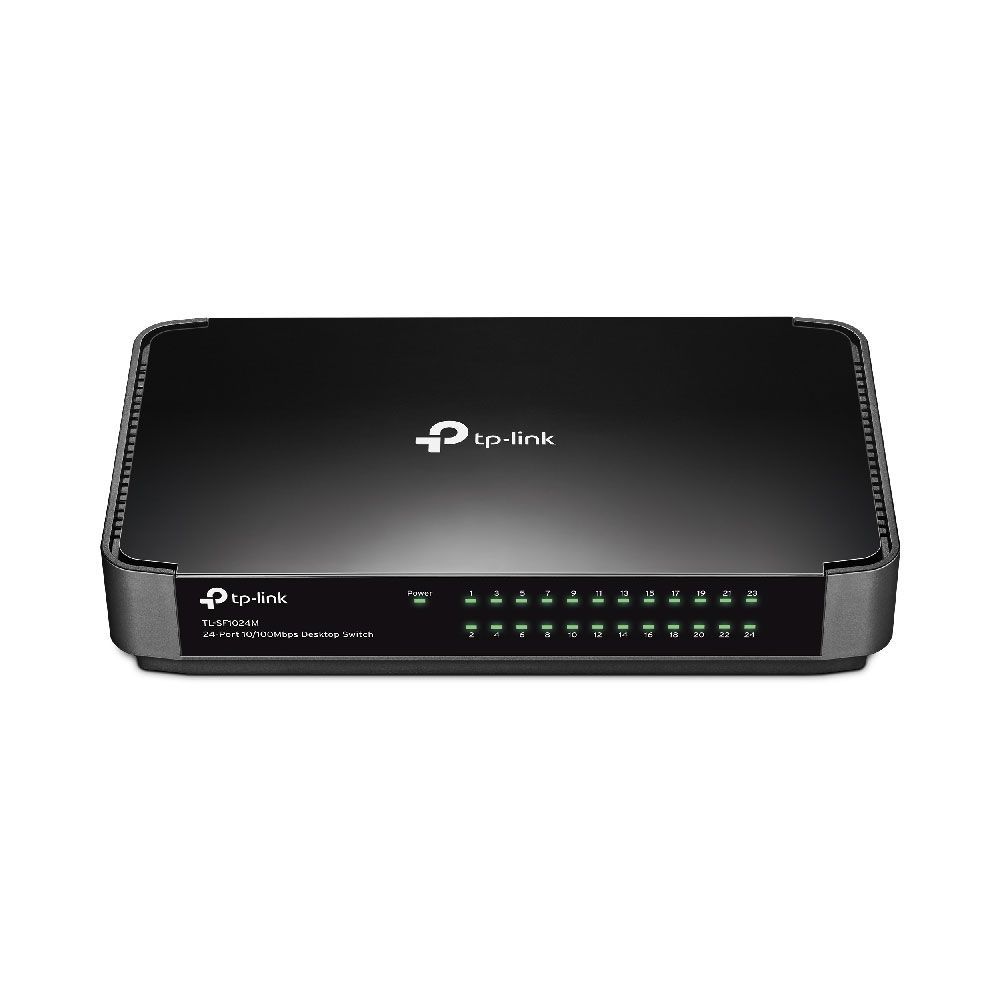

TP-Link 24 Port 10/100Mbps Desktop Switch TL-SF1024M Black
NPR 5,500.00
NPR 7,500.00
27% OFF
In Stock (10 available)
SKU: Color FamilyBlack
Key Features
- Free Shipping
- 30-Day Return Policy
- Manufacturer Warranty
- Secure Payment
Base Price:
NPR 5,500.00
Total:
NPR 5,500.00
Warranty Information
This product comes with manufacturer warranty. Please check the warranty card included with your purchase for specific terms and conditions.
Product Overview
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 13.1W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 13.62W(220V/50Hz) |
| Max Heat Dissipation | 46.44BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Advanced Functions | • Isolation Mode: Ports 1-22 • Loop Prevention: Ports 1-24 |
| Jumbo Frame | 10KB |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | 24-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
Product Specifications
<p> </p><figure class="table"><table><thead><tr><th colspan="2">HARDWARE FEATURES</th></tr></thead><tbody><tr><th>Standards and Protocols</th><td>IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x</td></tr><tr><th>Interface</th><td>24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)</td></tr><tr><th>Network Media</th><td>10BASET
UTP category 3, 4, 5 cable (maximum 100m)<br>100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)</td></tr><tr><th>Fan Quantity</th><td>Fanless</td></tr><tr><th>Physical Security Lock</th><td>No</td></tr><tr><th>Power Supply</th><td>100-240VAC, 50/60Hz</td></tr><tr><th>Power Consumption</th><td>Maximum: 13.1W (220V/50Hz)</td></tr><tr><th>Dimensions ( W x D x H )</th><td>11.6*7.1*1.7 in. (294*180*44 mm)</td></tr><tr><th>Mounting</th><td>Rack Mountable</td></tr><tr><th>Max Power Consumption</th><td>13.62W(220V/50Hz)</td></tr><tr><th>Max Heat Dissipation</th><td>46.44BTU/h</td></tr></tbody></table></figure><figure class="table"><table><thead><tr><th colspan="2">PERFORMANCE</th></tr></thead><tbody><tr><th>Switching Capacity</th><td>48Gbps</td></tr><tr><th>Packet Forwarding Rate</th><td>35.7Mpps</td></tr><tr><th>MAC Address Table</th><td>8K</td></tr><tr><th>Advanced Functions</th><td>• Isolation Mode: Ports 1-22<br>• Loop Prevention: Ports 1-24</td></tr><tr><th>Jumbo Frame</th><td>10KB</td></tr><tr><th>Green Technology</th><td>Yes</td></tr><tr><th>Transfer Method</th><td>Store-and-Forward</td></tr></tbody></table></figure><figure class="table"><table><thead><tr><th colspan="2">OTHERS</th></tr></thead><tbody><tr><th>Certification</th><td>FCC, RoHS</td></tr><tr><th>Package Contents</th><td>24-Port Gigabit Desktop/Rackmount Switch<br>Power Cord<br>Installation Guide<br>Rackmount Kits<br>Rubber Feet</td></tr><tr><th>Environment</th><td>Operating Temperature: 0℃~40℃ (32℉~104℉);<br>Storage Temperature: -40℃~70℃ (-40℉~158℉);<br>Operating Humidity: 10%~90% non-condensing;<br>Storage Humidity: 5%~90% non-condensing</td></tr></tbody></table></figure><p><br> </p>
